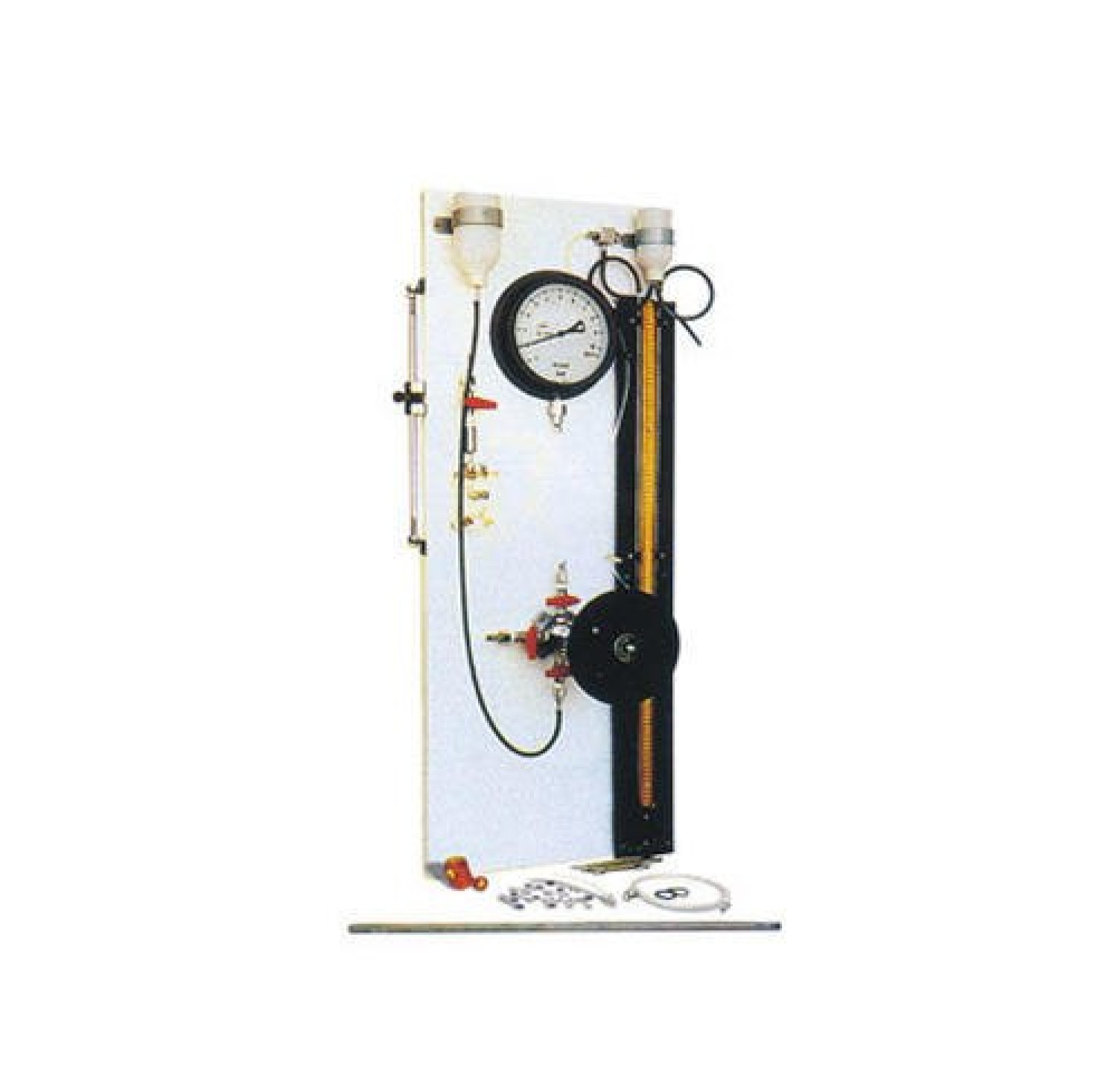

BISHOP PORE PRESSURE APAPRATUS (10KG/CM²)

MANOMETER: Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost ) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level. BURETTE: 50 ml Burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valve, Operated by means of a hand wheel on the end of the piston rod which is threaded thru the pump cap and gives a smooth, fine adjustment of pressure copper coil and water reservoir. The unit is tested against leaks up to 10Kg/cm²

  • 22000
  • mrp 24000
  • 8.33% off

MANOMETER: Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost ) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level.



BURETTE: 50 ml Burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valve, Operated by means of a hand wheel on the end of the piston rod which is threaded thru the pump cap and gives a smooth, fine adjustment of pressure copper coil and water reservoir. The unit is tested against leaks up to 10Kg/cm²

    MANOMETER: Glass U-tube manometer for measuring low positive pore pressures negative pore pressures and checking zero error of pressure gauge. It is provided with a mercury trap (Mercury supplied at extra cost ) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level.



    BURETTE: 50 ml Burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valve, Operated by means of a hand wheel on the end of the piston rod which is threaded thru the pump cap and gives a smooth, fine adjustment of pressure copper coil and water reservoir. The unit is tested against leaks up to 10Kg/cm²
