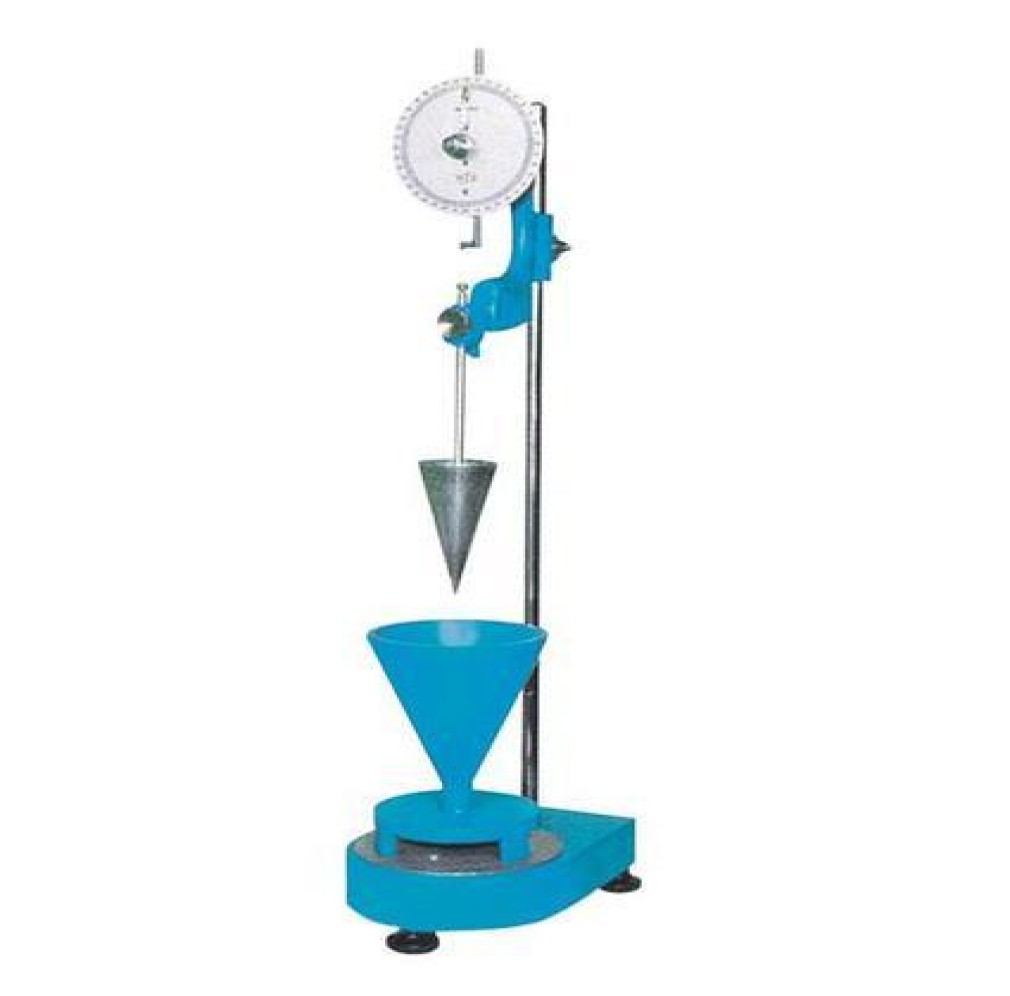

CONE PENETROMETER FOR CEMENT MORTAR - IS 2250

Consists of a movable bearing rod to which a cone 150 mm long and 75mm dia at a base, weighing about 300gm, is fixed. The bearing rod passes freely through a bracket which is provided with release mechanism. A dial graduated in mm with rack and pinion is provided for measuring the penetration. Complete with a conical container 150 mm ID x 180 mm deep and a platform. Flow Table required for the test is available at extra cost

  • 7500
  • mrp 8000
  • 6.25% off
  1. Consists of a movable bearing rod to which a cone 150 mm long and 75mm dia at a base, weighing about 300gm,  is fixed.
  2. The bearing rod passes freely through a bracket which is provided with release mechanism.
  3. A dial graduated in mm with rack and pinion is provided for measuring the penetration.
  4. Complete with a conical container 150 mm ID x 180 mm deep and a platform.
  5. Flow Table required for the test is available at extra cost
    1. Consists of a movable bearing rod to which a cone 150 mm long and 75mm dia at a base, weighing about 300gm,  is fixed.
    2. The bearing rod passes freely through a bracket which is provided with release mechanism.
    3. A dial graduated in mm with rack and pinion is provided for measuring the penetration.
    4. Complete with a conical container 150 mm ID x 180 mm deep and a platform.
    5. Flow Table required for the test is available at extra cost
