HyDrone™

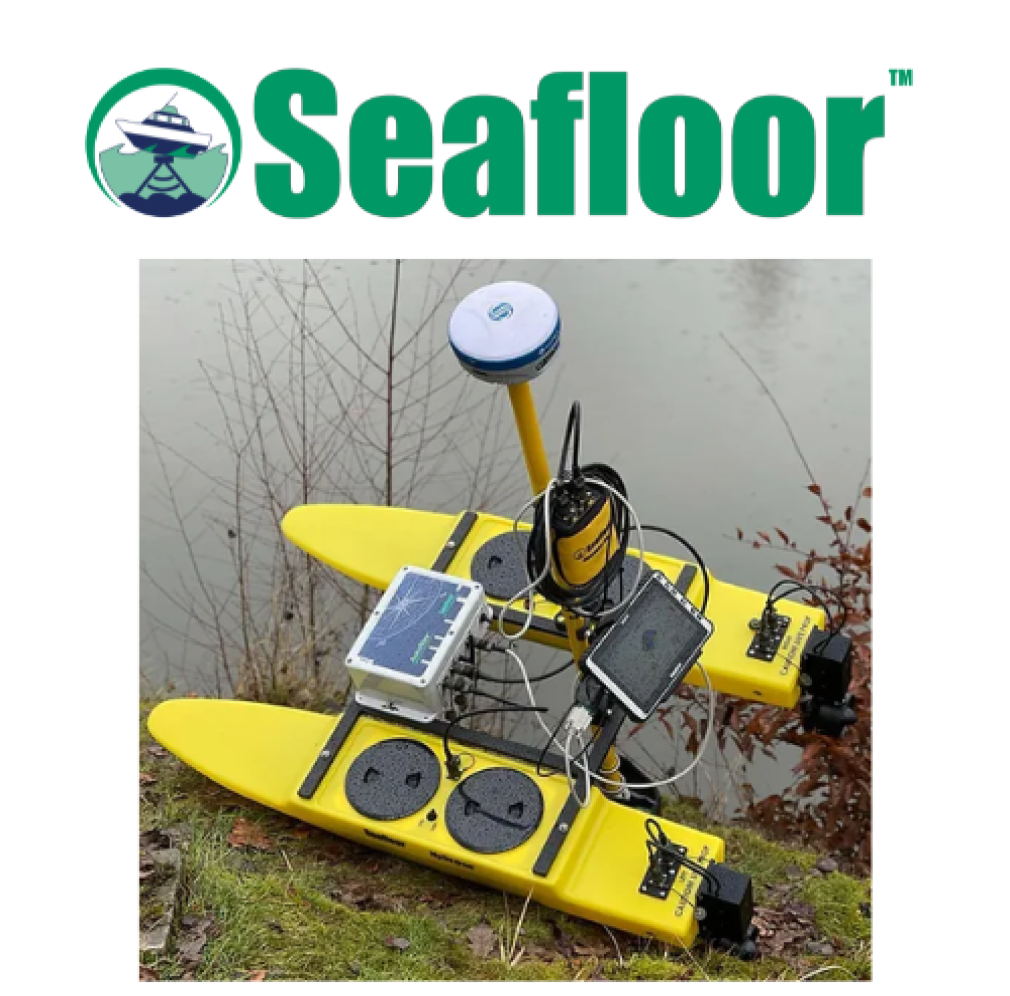

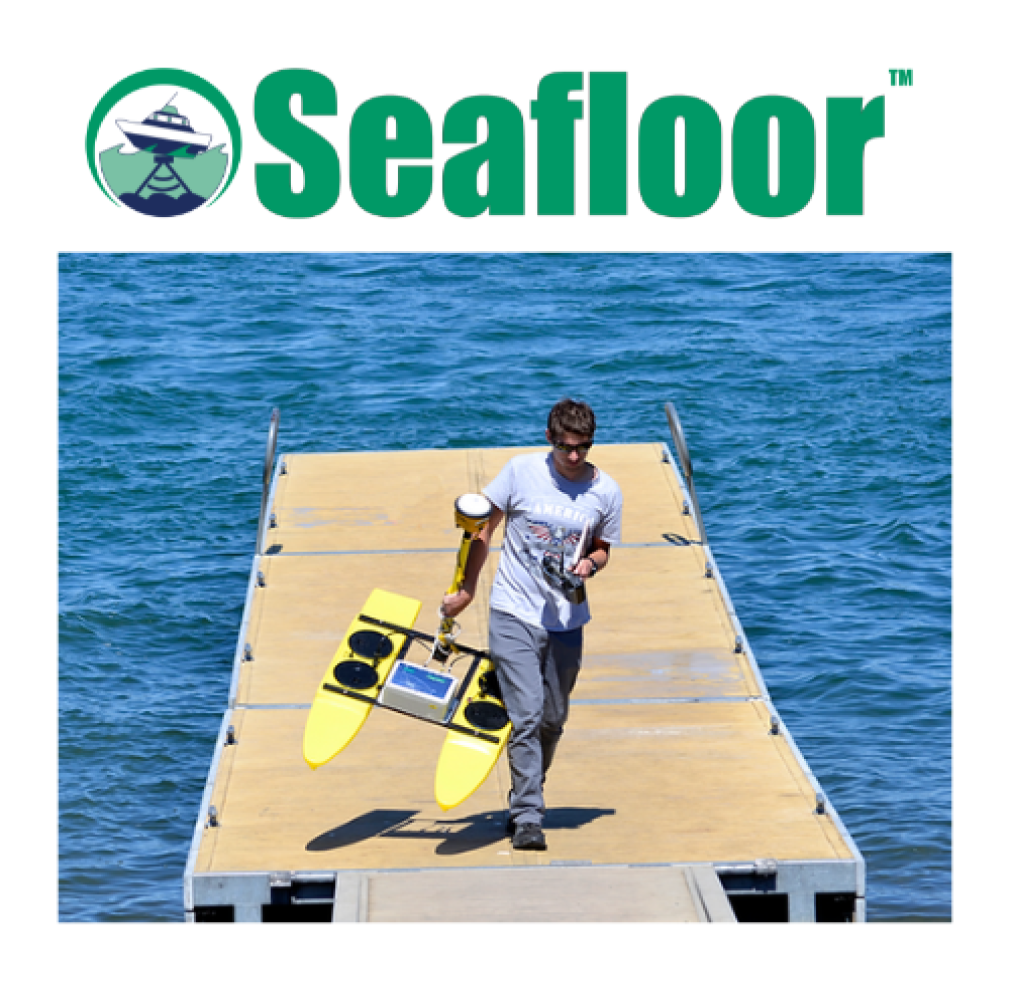

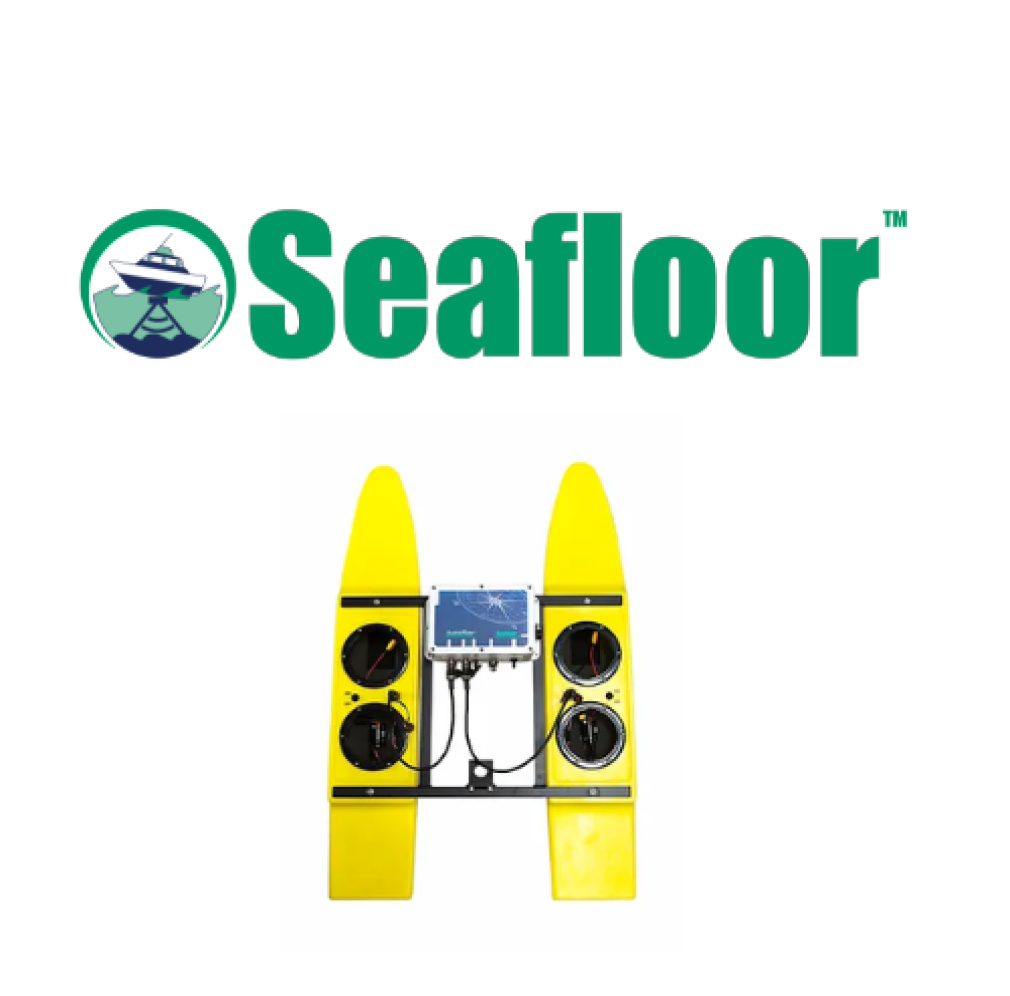

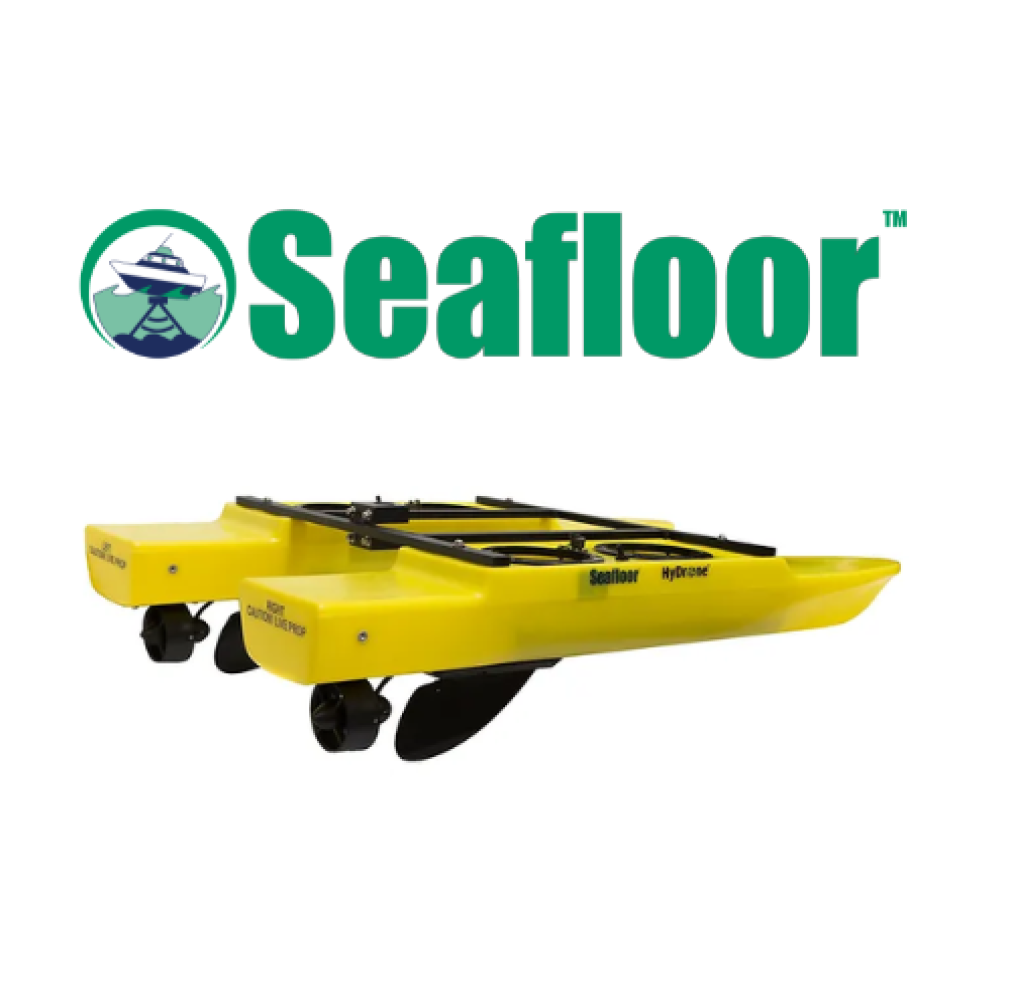

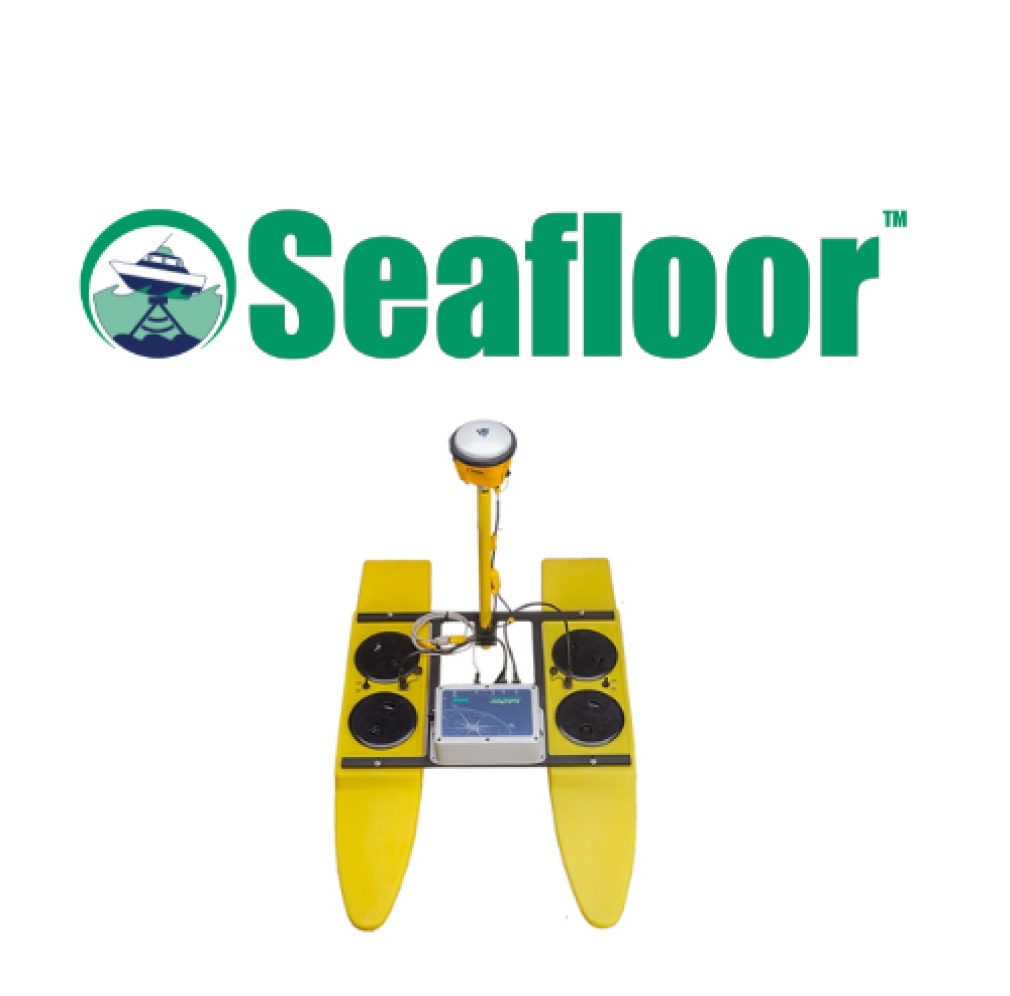

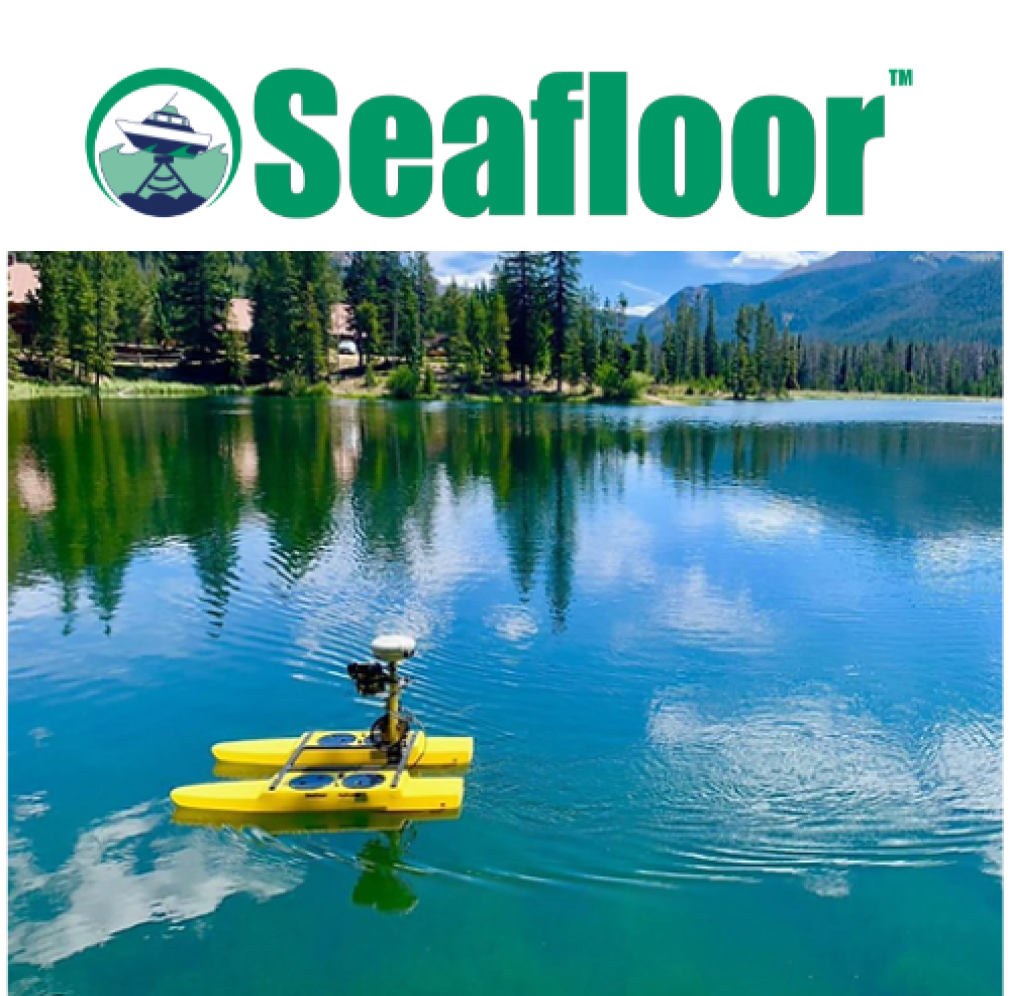

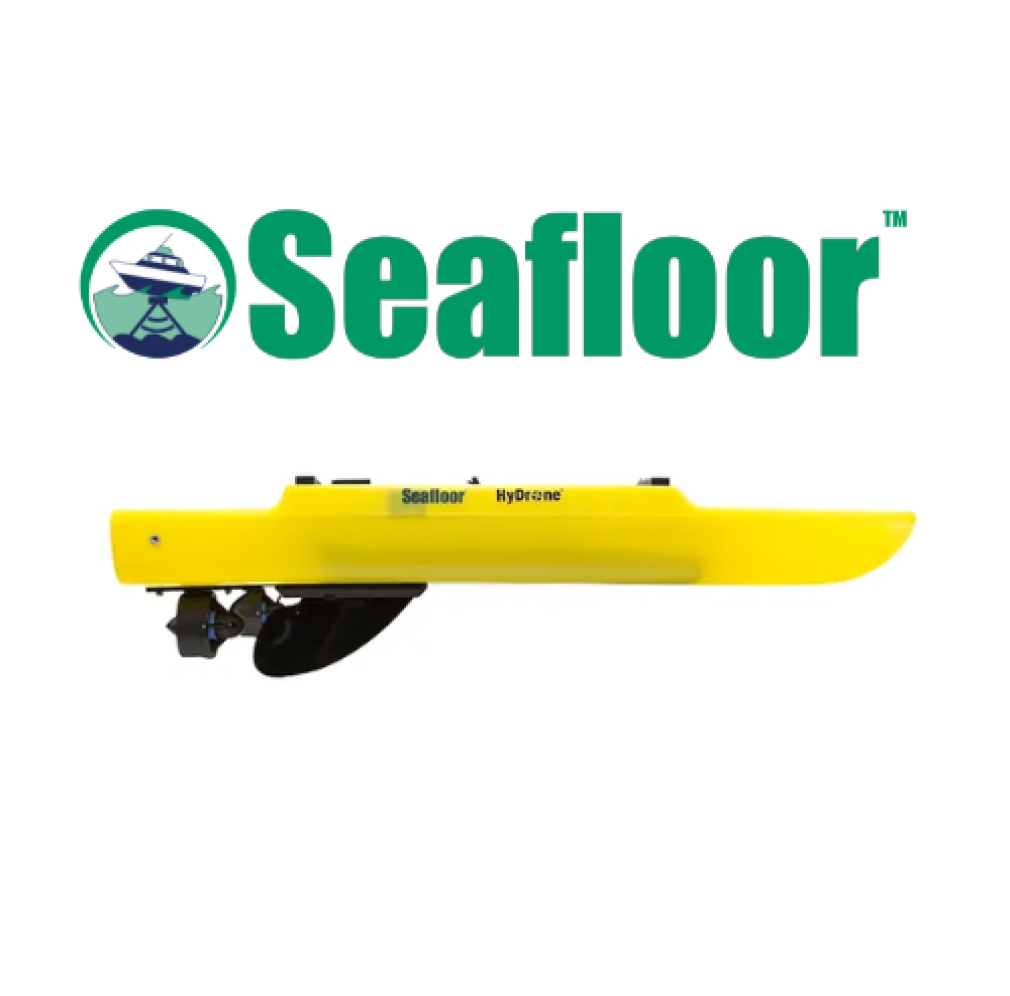

The HyDrone™ is a one-man portable catamaran platform developed for hydrographic survey applications. It has a light-weight, wide profile and watertight construction to provide stability and ruggedness. And, with the addition of the dependable HydroLite-TM™ portable echosounder kit, the HyDrone™ accomplishes the same results as more expensive remotely controlled survey systems. The HyDrone™ is made from professional grade, water-tight marine components and readily disassembles for ease of transport

  • 1
  • mrp 2
  • 50.00% off

The HyDrone™ is a one-man portable catamaran platform developed for hydrographic survey applications. It has a lightweight, wide profile and watertight construction to provide stability and ruggedness. And, with the addition of the dependable HydroLite-TM™ portable echosounder kit, the HyDrone™ accomplishes the same results as more expensive remotely controlled survey systems. The HyDrone™ is made from professional grade, water-tight marine components and readily disassembles for ease of transport

    Specifications

    Survey Speed: 2 kn

    Top Speed: 4 kn (Payload Dependent)

    Hull Length: 116cm / 45.6 in

    Hull Width: 21cm / 8.2 in

    Full Width:  73cm / 29 in

    Hull Material: UV Resistant HDPE

    Frame: Aluminum Powder Coated

    Hardware: Stainless Steel

    Empty Hull Weight w/ Batteries: 9.8 kg / 25 lbs

    Payload: 15 kg / 35 lbs

    Power: 2x 14.8 VDC 16 Ah Battery LiPo

    Battery Endurance: 8 Hours at Survey Speed

    Electronic Control Unit: 2x 120 amp

    Motor: 2x Brushless Thruster

    Steering: Differential

    Remote Control: 2.4GHz Long Range RCU

    Remote Range: Up to 1 km

    Hatches: 4x 7" Twist-Out Watertight Closure

    GPS: Compatible with All Brands

    Echosounder Package (Optional): Seafloor HydroLite™, HydroLite-DFX
