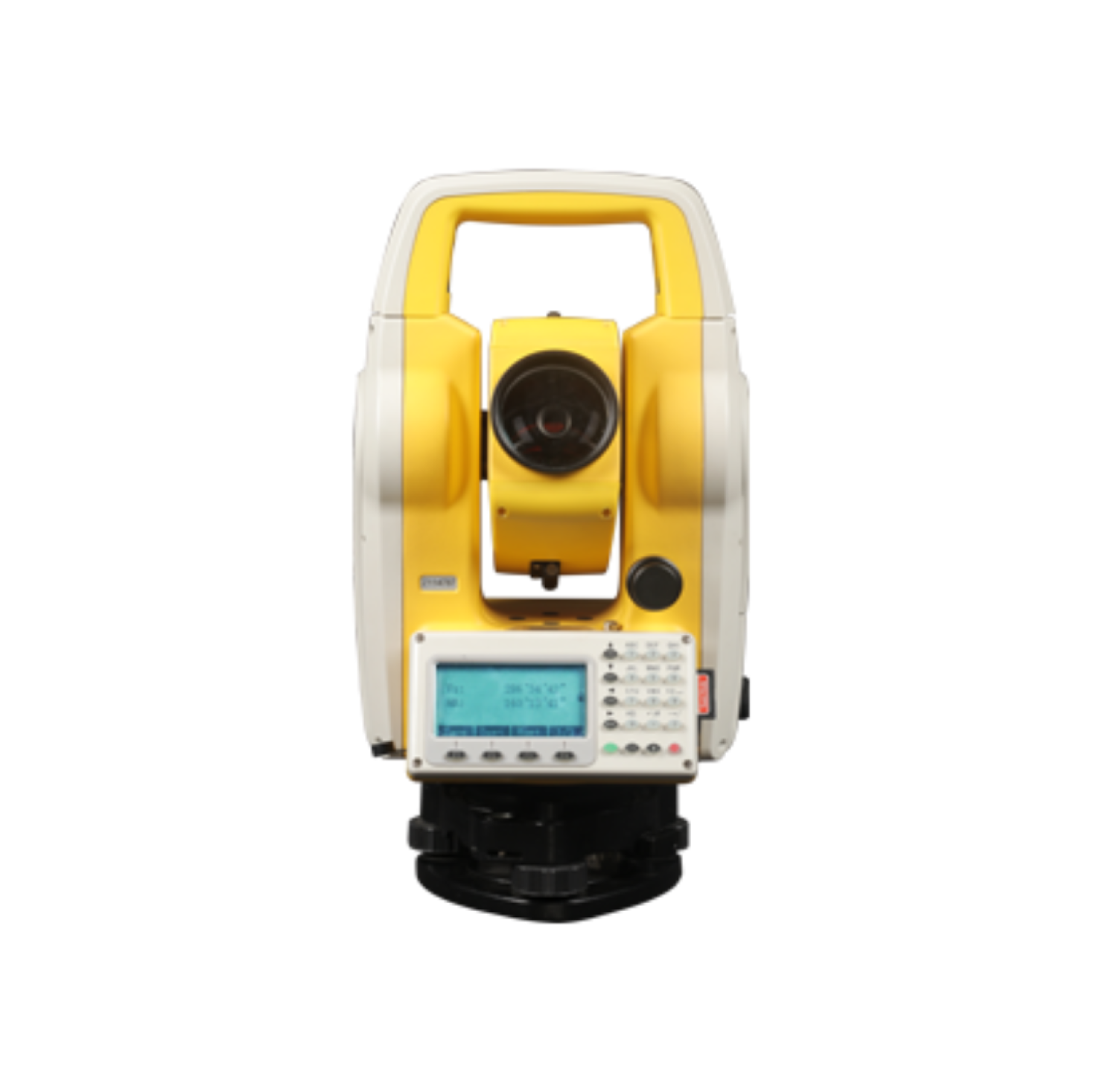

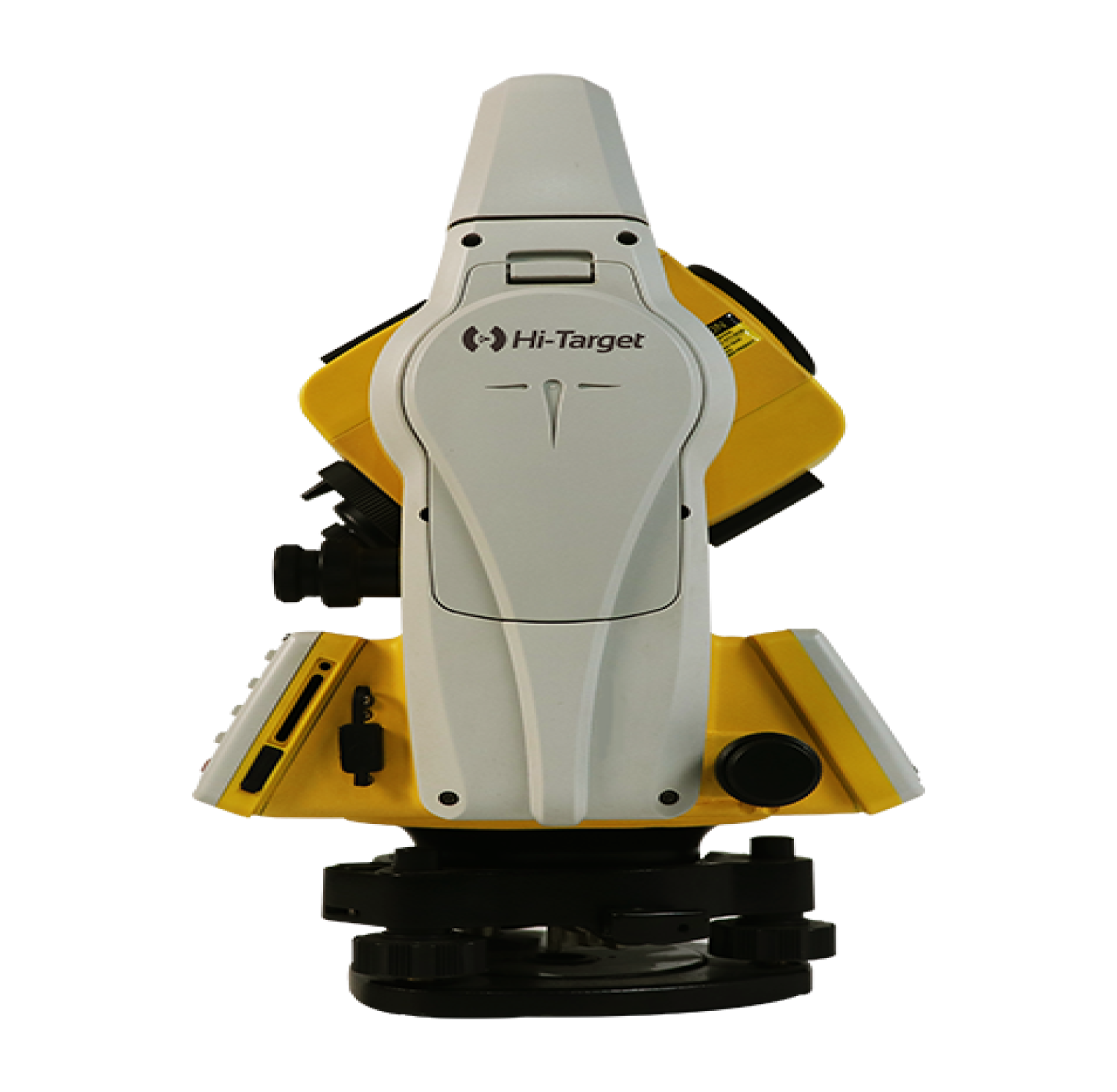

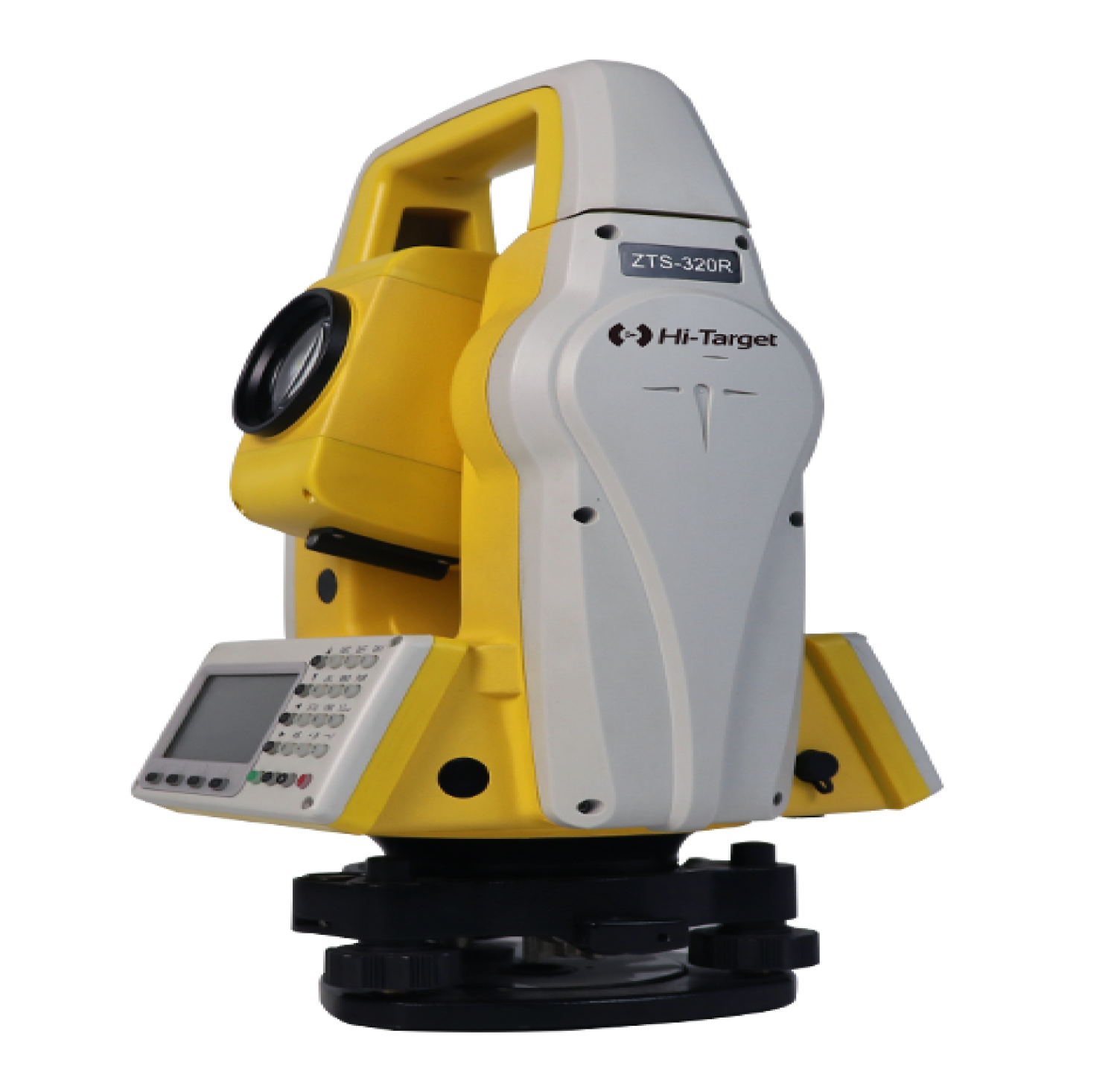

ZTS-320R

Total station with rugged design, easy to use and high-precision total station

  • 270000
  • mrp 306000
  • 11.76% off

Dual-axis Compensation

The ZTS-320R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.

Absolute Encoding

The absolute encoding disk ensures high accuracy, efficiency and stable performance. Initialization is needless but to measure the angle immediately as the ZTS-320R is turned on. The azimuth information won’t be missed even the ZTS-320R is power-off unexpectedly.

High-performance MCU SMT32

The SMT32 MCU based on ARM Cortex™-M processor enables the ZTS-320R has extra high processing speed and low-power consumption.

Bluetooth

The Bluetooth wireless technology makes ZTS-320R accessible to any data collector for real-time communication. The third party field software such as Carlson SurvCE is fully compatible with the ZTS-320R.

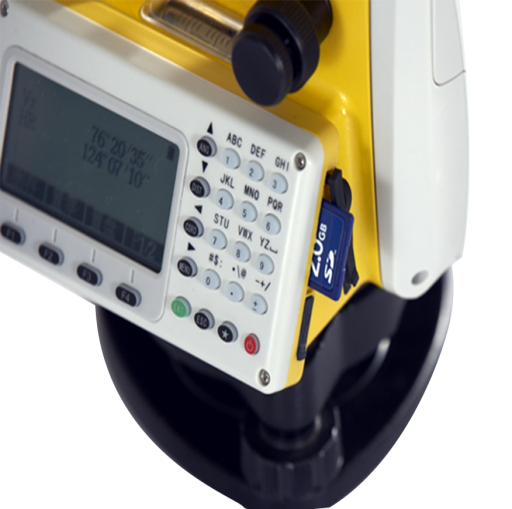

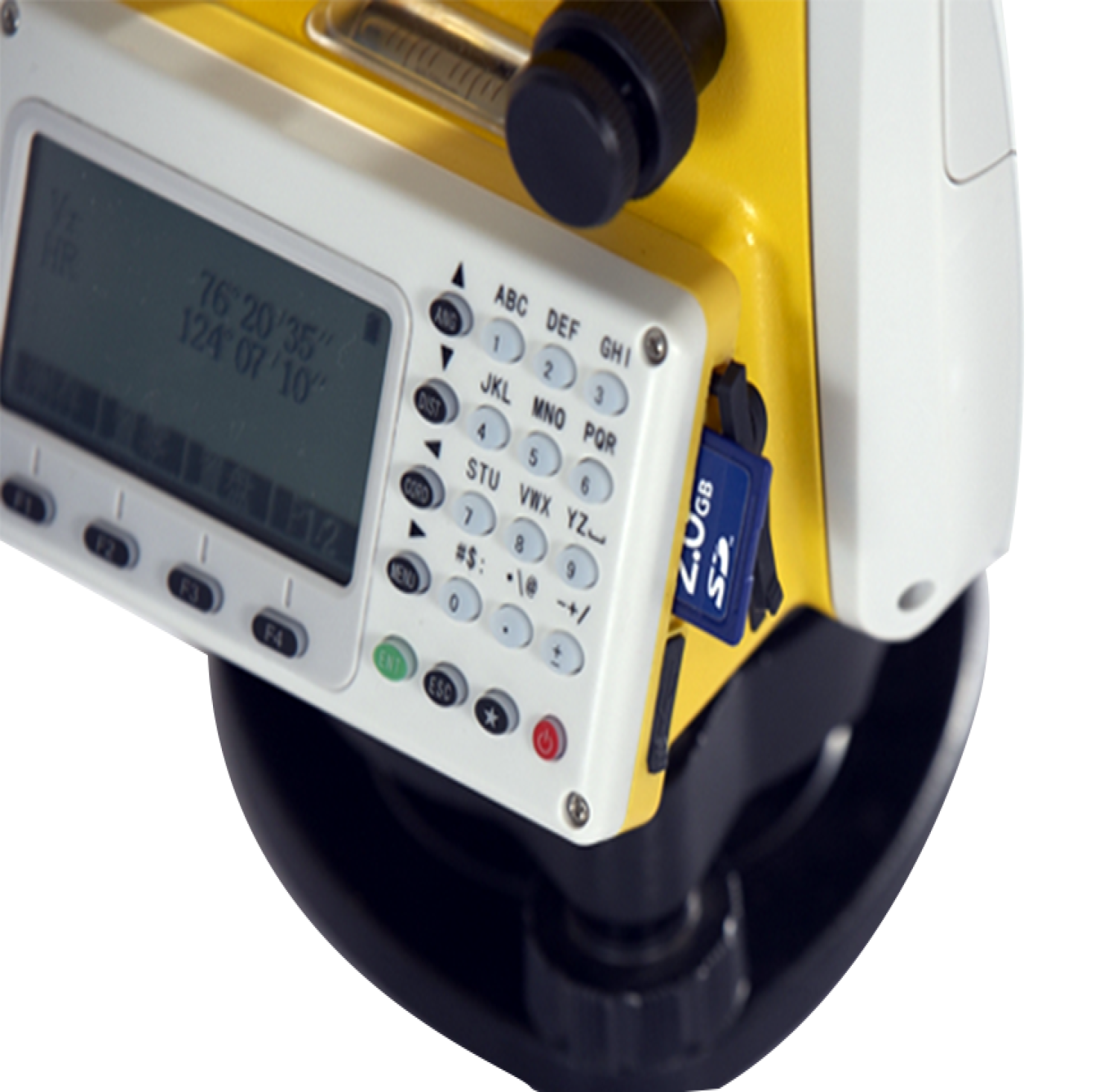

Data Storage

Diversified data transfer options such as SD card, USB pen drive, mini-B interface.

Backlight

The display and keyboard with backlight for working in the dark.

Diagonal Eyepiece

Support diagonal eyepiece for observations at steep lines of sight.

Calibration Software

The proprietary HI-TARGET calibration software is accessible for real-time diagnosis to ensure trouble-free operation.

Data Transfer Software

The proprietary HI-TARGET data transfer software supports different types of output data formats, which can be used in AutoCAD or other brands’ post-processing software.

    Angle Measurement
    Measurement Method : Absolute Encoding
    Minimum Readout : 1″/5″/10″（0.3mgon/1.5mgon/3mgon）adjustable
    Accuracy1  :  2″

    Distance Measurement
    Single Prism : 3000m (9,842ft.) under good condition3
    Three Prisms : 6000m (19,685ft.) under good condition3
    Reflective Sheet : 800m (2,624 ft.)
    Accuracy  : 2 mm +2ppm
     Measuring Time (Fine/Quick/Tracking) :  1.5s/1s/ 0.5s

    Distance Measurement
    Reflectorless2 Range : 600m(1,969 ft.)
    Single Prism : >7500m (24,606ft.)
    Accuracy : 3mm+2ppm
     Measuring Time :  1.5s

    Telescope
    Magnification : 30X
    Field of View  : 1°30′ (2.7m at 100m)
    Minimum Focusing Distance : 1.2m
    Reticle : Illuminated

    Compensator
    System : Dual-axis liquid tilt sensor
    Working Range : ±3′
     Setting Accuracy :  1″

    Communication
    Bluetooth Interface : Standard RS232, SD card4, USB pen drive, mini-B
     Internal Data Memory :  Approx. 20,000 Points
    Data Format : ASCII

    Operation
    Operation system : Real-time Operating System
    Display : High-resolution backlight black and white display
    With contrast adjustment/ Graphics…….192 x 96 pixels
    Character : 6 lines x 25 characters
    Keyboard : 2 sides Alphanumeric backlit crystal keyboard

    Laser Plummet
    Type : Laser point, 4 brightness levels
    adjustment / Optical plummet (optional)
    Centering Accuracy : 1 mm at 1.5m instrument height

    Power Supply
    Battery Type : Rechargeable Li-ion battery
    Voltage/Capacity : ZBA-400:7.4V (DC) / 3000mAh
    Operating Time With ZBA-400 : Optimal 16 hours5 (Continuous angle measurement
    every 30 seconds) / 10 hours (typical)
    Measuring Times : Approx. 12000 times

    Weight
    Weight (Incl. Battery&Tribrach) : Approx. 5.5kg (12.1lb.)

    Environmental
    Operating Temperature : 20℃ ~﹢50℃( -4℉ to +122℉)
    Storage Temperature : -40℃ ~﹢70℃(-40℉ to + 158℉)
    Dust&Water Proof (IEC60529 Standard)/Humidity : IP65,95%, non-condensing
